MDT – Analog In / Output

Description

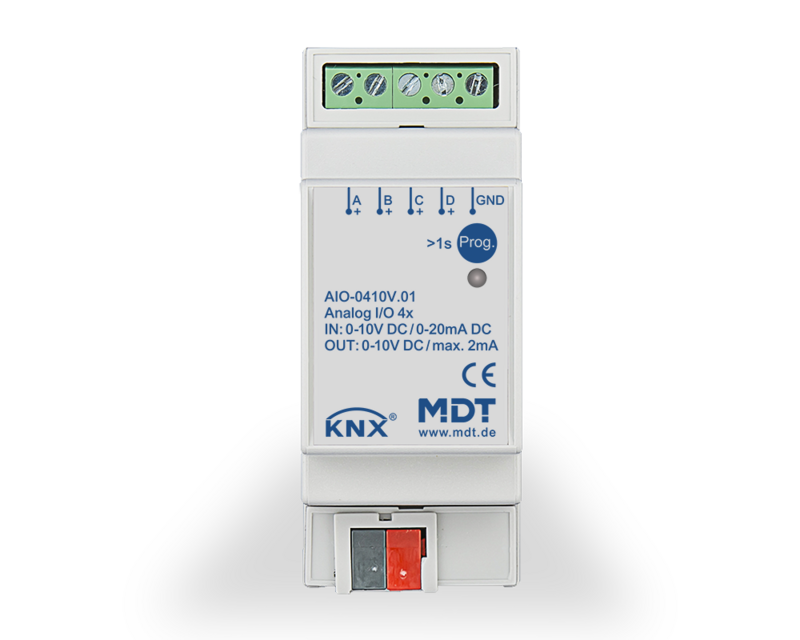

The MDT Analog In / Output AIO is suitable for controlling devices with 0-10 V input (e.g. ventilation systems) and for recording 0-20 mA (4-20 mA) / 0-10 V measurement data (e.g. from fill-level or pressure sensors). Each channel can be configured both as an input and as an output and is galvanically separated from the KNX bus.

Product features

• Each channel can be configured independently (in / output)
• In / outputs are galvanically-isolated from the bus
• In / outputs are galvanically-connected together
• Voltage for output operation is generated inside the actuator
• No external power supply required
• Input operation 0-10 V / 2-10 V or 0-20 mA / 4-20 mA (switchable)
  – Conversion of measuring unit and DPT can be parameterized
  – Min/max function, wire breakage detection
  – Threshold and traffic light function
• Output functions 0-10 V:
  – Control by 1 Byte, 2 Byte float or 1 Bit objects
  – Day/night function to limit control value
  – Emergency mode if given value fails

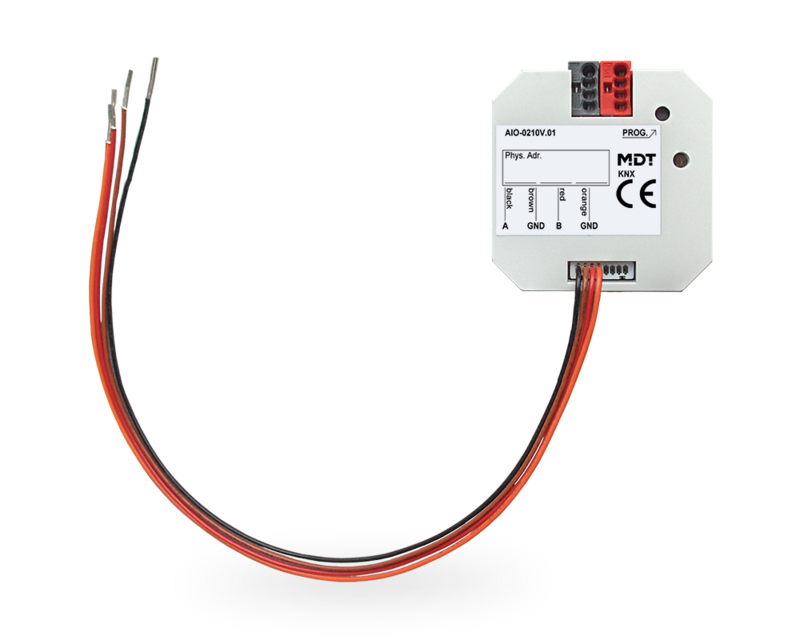

• Flush mounted version:
  – Fitting in a installation box socket
  – Dimensions (W x H x D): 41 mm x 41 mm x 12 mm
• Quick application download (long frame support with ETS5 or higher)
• Production in Germany, certified according to ISO 9001
• 3 year warranty
