MDT – DALI Control 64 Gateway

Description

The MDT DALI Control 64 Gateway forms the interface between the KNX and the DALI bus. For example, it enables the existing DALI lights to be switched and dimmed using the MDT glass or plastic push-buttons. The gateway supports DALI and DALI-2 compliant lights/ballasts, from single colour to Tunable White, to RGB(W).

Product features

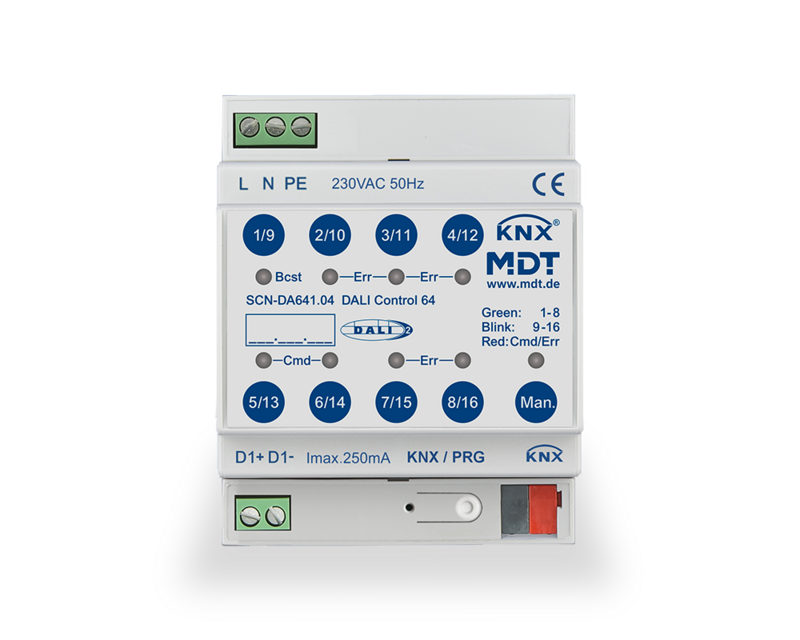

• SCN-DA641.04: Individual control of up to 64 ECGs / 16 DALI groups

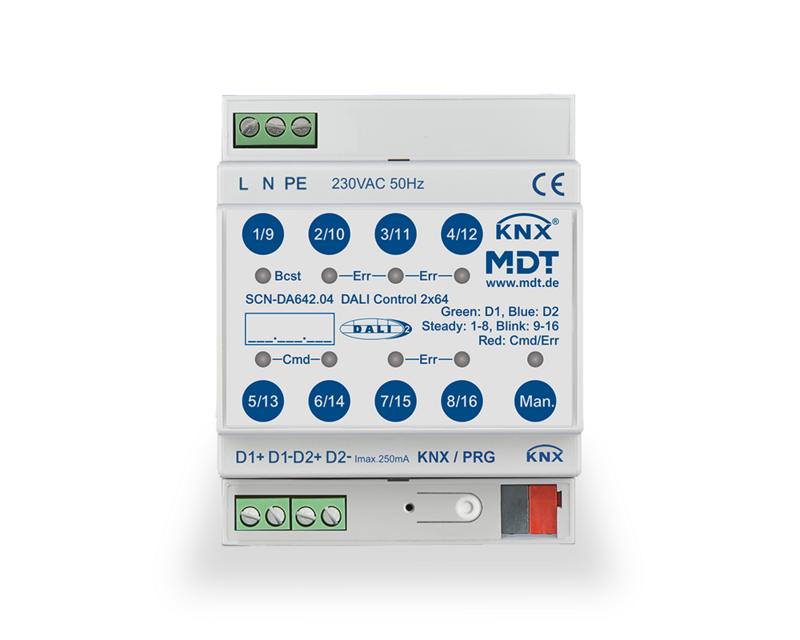

• SCN-DA642.04: 2 DALI outputs for max. 2 x 64 ECGs; individual control of up to 64 ECGs / 16 DALI groups per output
• Supports DALI and DALI-2 standard, as well as DALI ECG DT6 / DT8
• Innovative HSV colour control, RGB, RGBW and XY colour according to DALI DT8 standard (16 DALI groups)
• Tunable White, colour temperature control (16 DALI groups)
• Integrated colour control module for time-dependent control of the luminous colour in up to 300 steps
• Operation modes incl. normal operation, continuous operation, night operation, stairwell- and panic operation, manual operation
• 16 scenes with individual dimming times
• Energy saving function for switching off the ECGs in the DALI groups (via additional KNX switch actuator)
• Fault detection of lamp faults and faulty ECGs
• Quick exchange of ECG
• Free DCA app for commissioning the DALI bus system and configuration of the scenes and time control
• Commissioning with ETS5 or higher
• Production in Germany certified according to ISO 9001
• 3 years warranty
