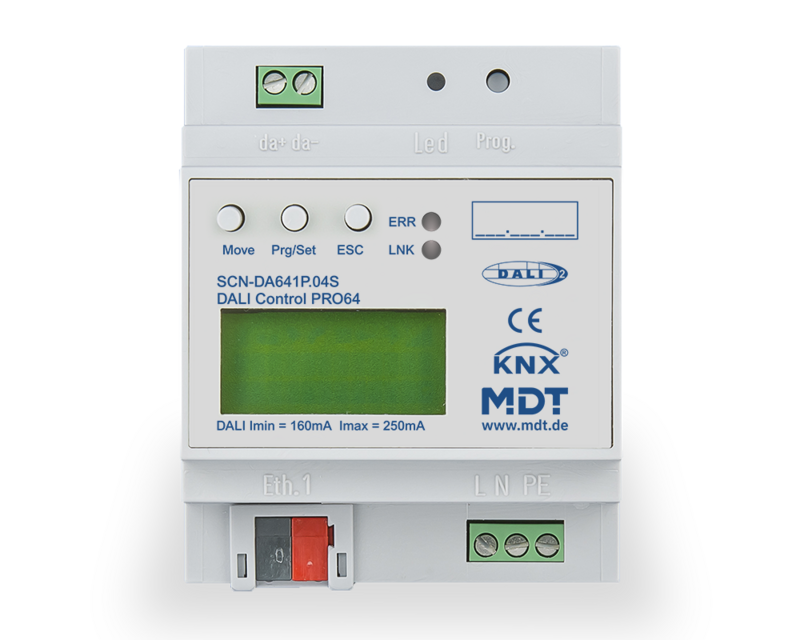

MDT – DALI Control PRO64 Gateway

Description

The MDT DALI Control PRO64 Gateway is a multi-master application controller for controlling electronic ballasts (ECG) with a DALI interface using the KNX bus. Aside from supporting DALI and DALI-2 compliant lights/ballasts, up to 8 DALI-2 motion detectors or light sensors can be connected. Using the integrated web interface, DALI commissioning and electronic ballast replacement is also possible without using the ETS.

Product features

• Individual control of up to 64 ECG / 16 DALI groups
• KNX Secure device
• Supports DALI and DALI-2 standard
• Up to 8 DALI-2 motion detectors or light sensors can be additionally connected
• Innovative HSV colour control, RGB, RGBW and XY colour according to Dali DT8 standard, 64 individual Channels / 16 DALI groups
• Tunable White, colour temperature control 64 individual Channels / 16 DALI groups
• Supports different DALI DT6 / DT8 ECG
• Integrated colour control module for time dependent control
• Manual operation for all 16 groups
• 16 scenes with individual dimming times
• Energy saving function, 16 flexible standby groups for switching off any individual channels / groups of ECGs (via additional KNX switch actuator)
• Simple group attribution directly on the device
• Dali Commissioning via Web browser or directly on the device display
• Detection of faulty lamps and faulty ECGs, quick exchange of ECG
• Free DCA app for commissioning the DALI bus system
• Commissioning with ETS5 or higher
• Production in Germany certified according to ISO 9001
• 3 year warranty
