MDT – Glass Push-button II Smart | series .02

Description

The MDT Glass Push-button II Smart releases KNX telegrams after touching the sensor areas on top, 1 or 2 Button operation can be adjusted. The device provides extensive functions like switching of lighting, operation of blinds and shutters, contact type and block communication objects for each channel. The Glass Push-button has 4 integrated logical modules.

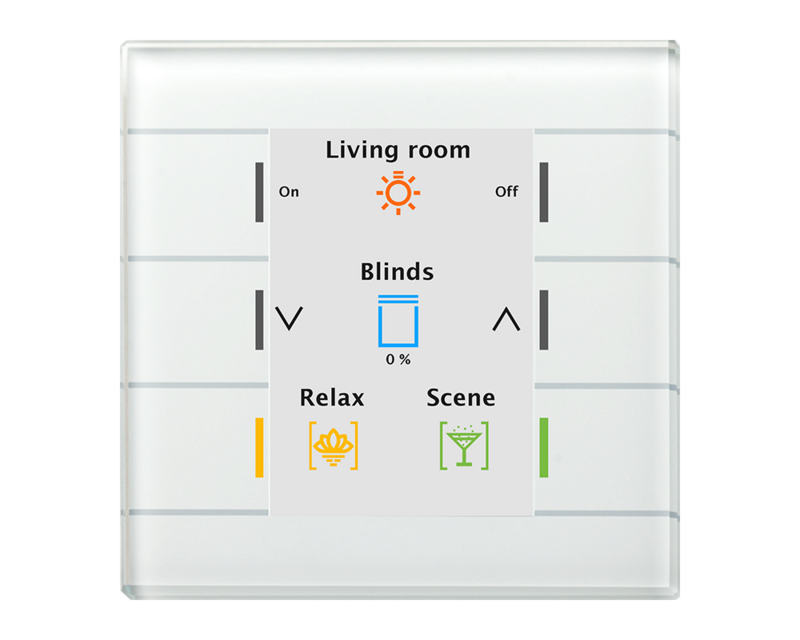

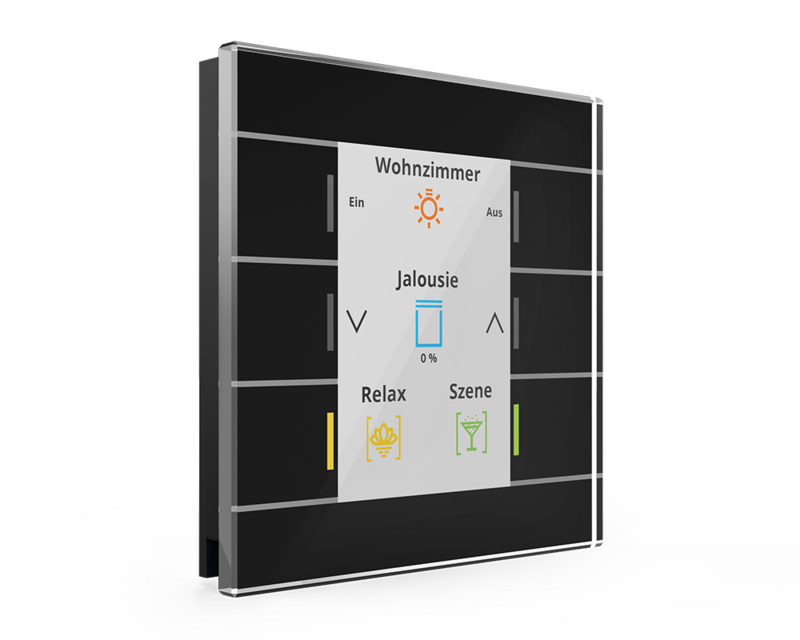

The Glass Push-button II Smart has a large, coloured active display to indicate funtion and status. Up to 12 functions on 2 or 3 levels (2×6 or 3×4 functions) can be parameterized. The Glass Push-button II Smart can be also used as 6-fold push button without function levels.

The Glass Push-button II Smart with temperature sensor offers additional functions to set temperature and operation mode. In combination with the MDT Heating Actuator an efficient room temperature regulation can be configured and vizualized. Furthermore user defined 1 Bit messages and 14 Byte text telegrams can be indicated.

Product functions:

• The buttons can be programmed for 1 or 2 button operation
• Up to 12 functions on 2 or 3 levels (2×6 or 3×4 functions)
• Up to 6 functions without level switching
• Innovative group control with long/extra long operation / Keystroke
• New mapping function for convenient function allocation
• Large, active colour display to indicate function and status
• Adjustable background colour of the display (white or black)
• New Standard symbols
• Symbols and plain text adjustable for each button / function
• Indication of individual messages / text telegrams (1 Bit / 14 Byte)
• Application as RTC in combination with AKH heating actuator
• 1 or 2 button operation for switching, dimming, shutters, values
• Short / long button push with 2 objects
• Innovative group control with long/extra long operation / Keystroke
• New mapping function for convenient function allocation
• Extended info display with up to 3 lines and up to 6 measured values
• Modern Icons (Icon upload)
• Slap function with new range of functions
• RGB status of all buttons separately controllable from each level
• Indication of indoor / outdoor temperature and time
• Automatic display brightness via light sensor and day / night object
• Slap function with new range of functions
• Recommended installation height: 1.50-1.60 m (as Push Button)
• Installation in an installation box
• Dimensions (W x H): 92 mm x 92 mm
• No additional power supply required

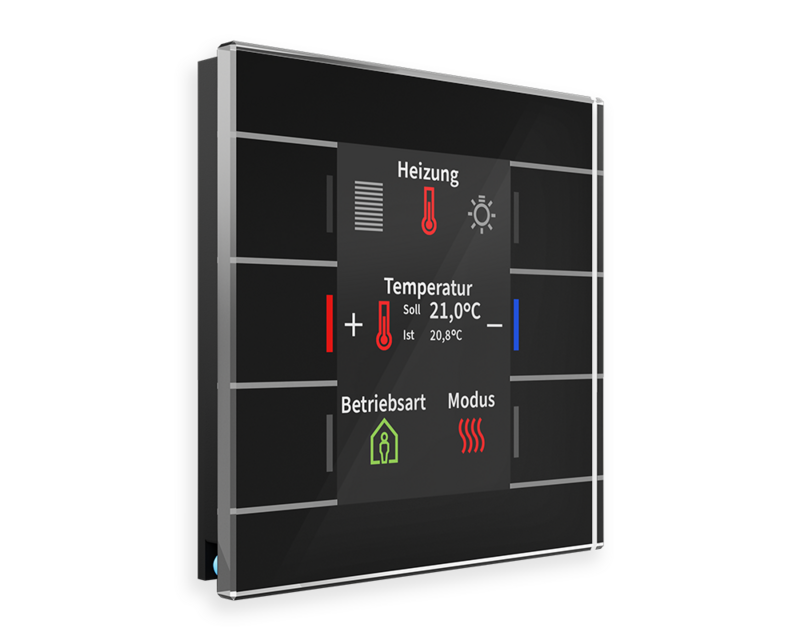

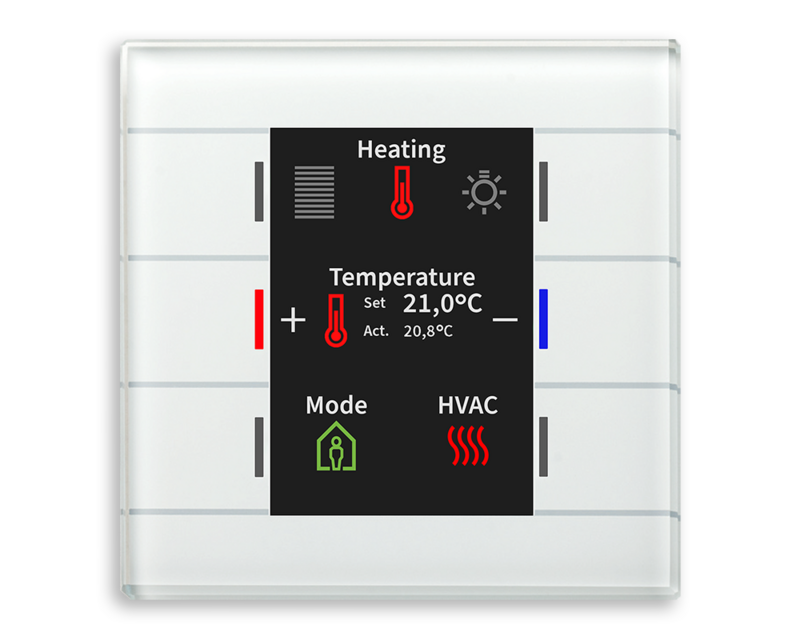

Glass Push-button II Smart with temperature sensor:

• With temperature sensor for room temperature measurement
• Additional functions to set temperature and operating mode
• Application as RTC in combination with AK heating actuator
