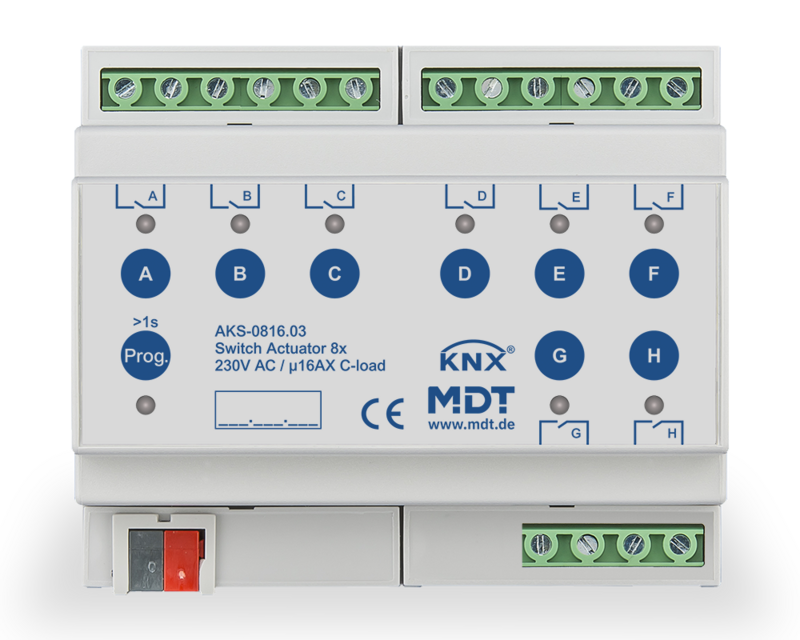

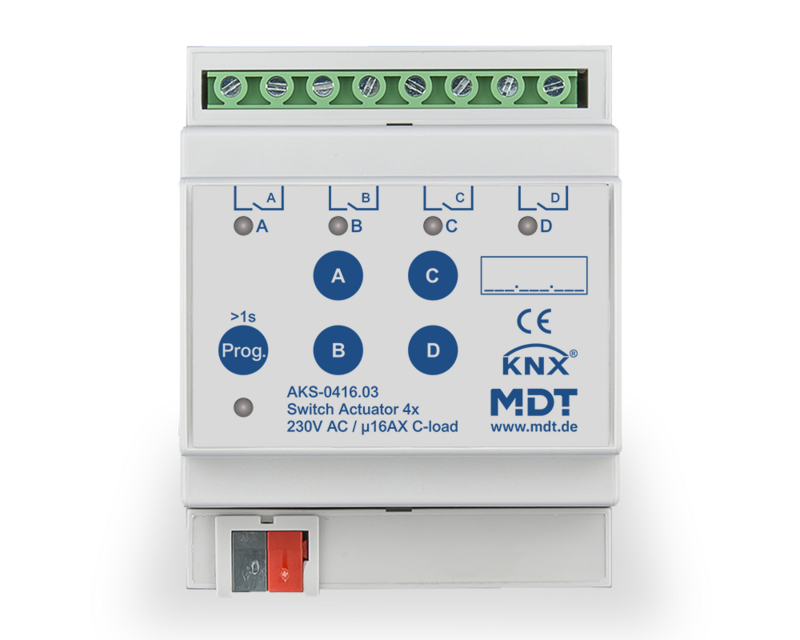

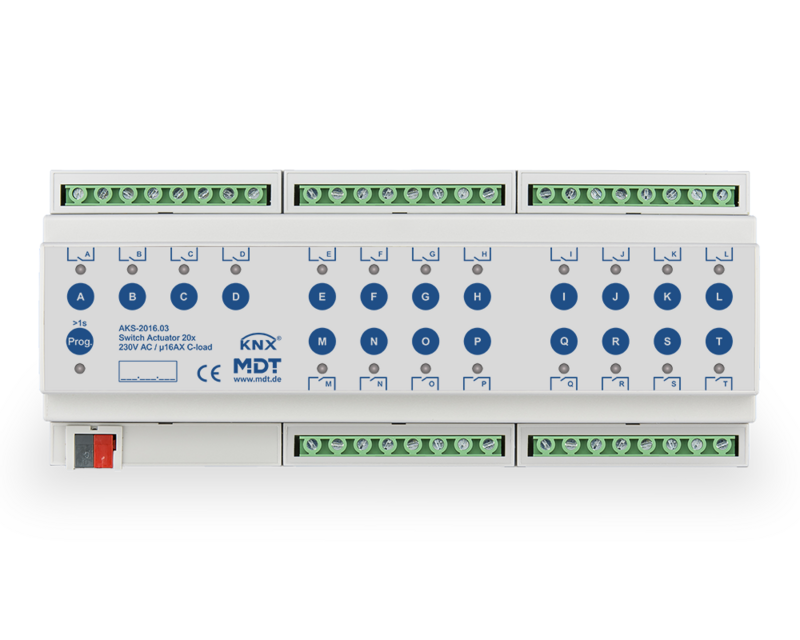

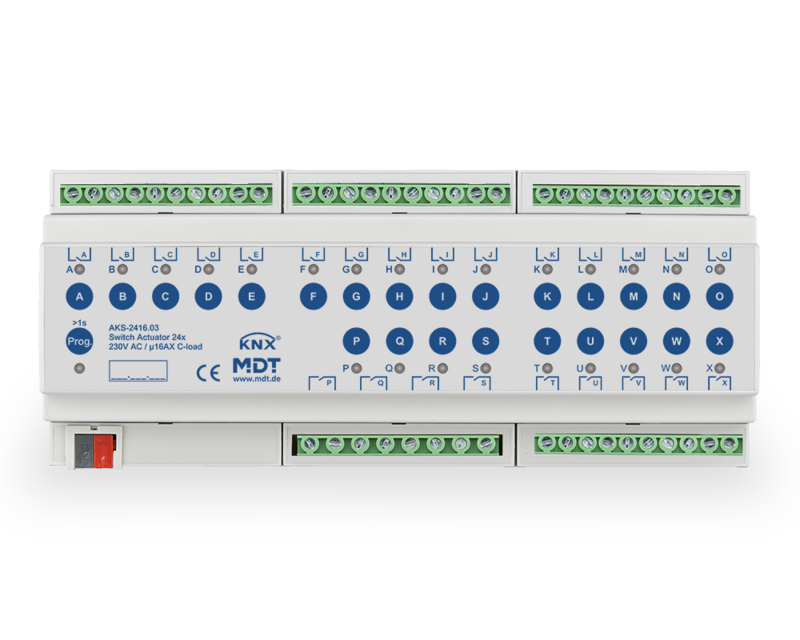

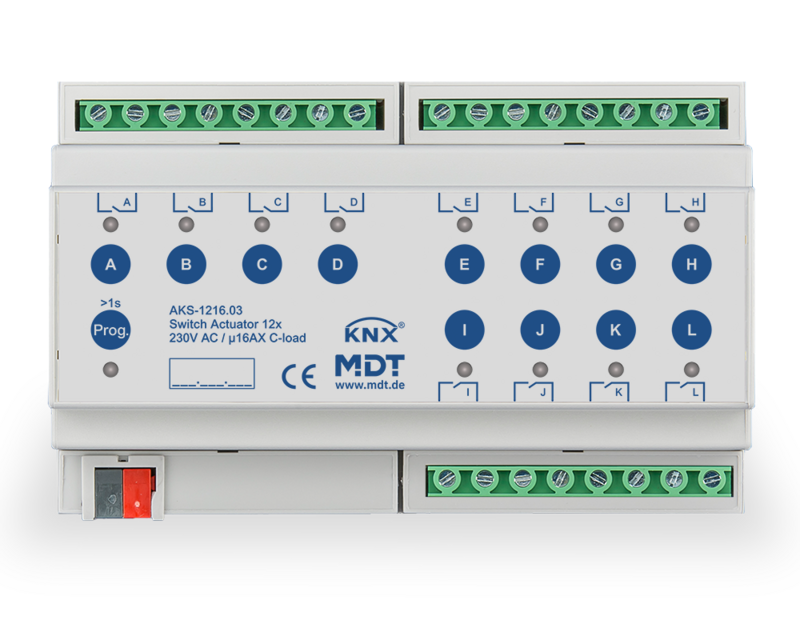

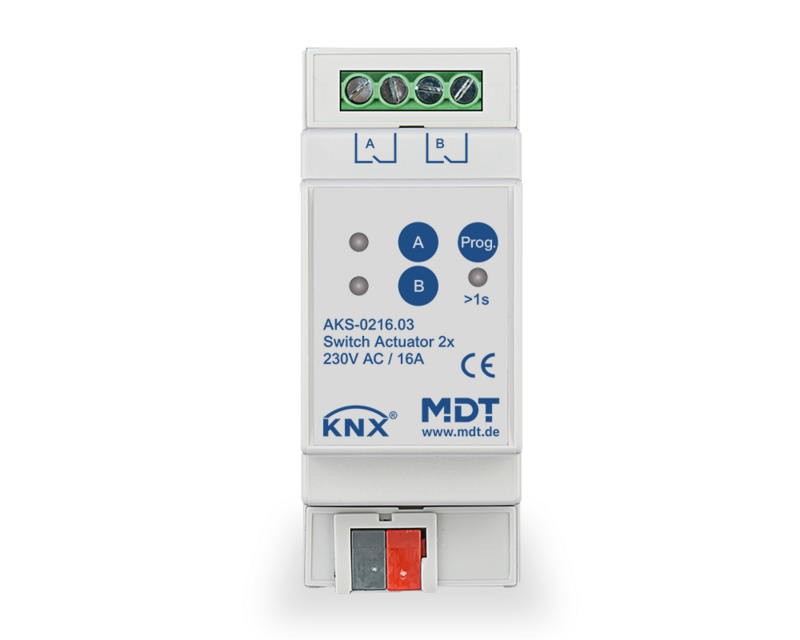

MDT – Switch Actuator AKS

Description

The standard version of the MDT Switch Actuator AKS 16 A comes with a wide range of functions for medium to large loads and offers more channels with a smaller space requirement. This saves costs per channel and for the sub-distribution. The actuator is equipped with bistable relays for currents up to 16 A and high C-loads of up to 140 µF. Each channel can be switched directly on the actuator via a button.

Product features

• Space saving design
• Comprehensive application
• Lockable manual operation and LED indicator for each channel
• NO and NC contact operation
• Status response with manual operation
• Time functions (switch-on / switch-off delay, staircase light function)
• Extended logic and scene functions for each channel
• Extended status functions (inverted, cyclic, with lock)
• Threshold switch (Byte / 2 Byte / 2 Byte float)
• Hour meter for switching
• Priority / forced operation with automatic release time
• 4 mm² / 2 x 2.5 mm² screw terminals. Separate supply phases
• Quick application download (long frame support with ETS 5 or higher)
• Production in Germany, certified according to ISO 9001
• 3 year warranty
